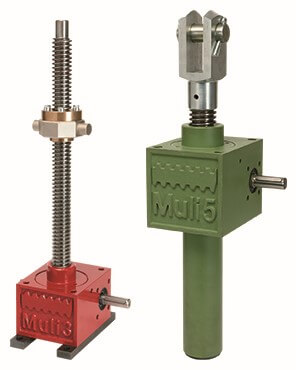

JUMBO® 1 - 5 (-500 kN)

JUMBO® 1 - 5 (-500 kN)

Driven by a precision worm gearing (screw keyed to the worm wheel), the rotary motion of the screw is translated into linear motion of the travelling nut on the screw.

Product Selector

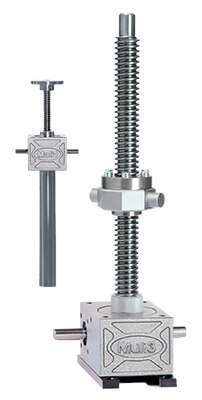

MULI® 0 - 5 (-100 kN)

MULI® 0 - 5 (-100 kN)

The rotary motion of precision worm gearing (worm shaft and internally threaded worm wheel) is converted into axial linear motion of the screw, which travels through the gear box housing. The load is attached to the end of the screw.

Product Selector

Trapezoidal Screw Specifications:

Trapezoidal Screws MULI 1 MULI 2 MULI 3 MULI 4 MULI 5 JUMBO 1 JUMBO 2 JUMBO 3 JUMBO 4 JUMBO 5
Maximum Lifting Capacity (kN) 5 10 25 50 100 150 200     250      350      500
Screw Diameter and Pitch (mm) 18 x 4 20 x 4 30 x 6 40 x 7 55 x 9 60 x 9 70 x 10   80 x 10   100 x 10  120 x 14
Stroke in mm per
full turn of drive shaft		 Ratio H 1 1 1 1 1 1 1       1        1      1
Ratio L 0.25 0.25 0.25 0.25  0.25 0.25 0.25     0.25      0.25    0.25
Gear Ratio Ratio H 4:1 4:1 6:1 7:1 9:1 9:1 10:1     10:1       10:1     14:1
Ratio L 16:1 16:1 24:1  28:1  36:1 36:1 40:1     40:1       40:1     56:1
Efficiency (%) Ratio H 31 29 29 26 24 23 22      20       19      19
Ratio L 25 23 23 21 19 18 17      15       15      15
Weight (kg) (zero stroke) 1.20 2.10 6.0 17 32 41 57      57       85     160
Weight (kg per 100 mm stroke) 0.26 0.42  1.14  1.67 3.04 3.10 4.45    6.13      7.90      11.5
Idling Torque (Nm) Ratio H 0.04 0.11 0.15 0.35 0.84 0.88 1.28    1.32     1.62     1.98
Idling Torque (Nm) Ratio L 0.03 0.10 0.12  0.25 0.51 0.57 0.92    0.97      1.10      1.42
Housing Material G-AL GGG-40



Ball Screw Specifications:

Ball Screws MULI 1 MULI 2 MULI 3 MULI 4 MULI 5 JUMBO 3
Maximum Lifting Capacity (kN) 5 10 12.5 22 42 65 78
Screw Diameter and Pitch (mm) 16 x 5 20 x 5 25 x 5 40 x 5 40 x 10 50 x 10 80 x 10
Stroke in mm per
full turn of drive shaft		 Ratio H 1.25 1.25 0.83 0.71 1.43 1.1 1
Ratio L 0.31 0.31 0.21 0.18 0.36 0.28 0.25
Gear Ratio Ratio H 4:1 4:1 6:1 7:1 9:1 10:1
Ratio L 16:1 16:1 24:1 28:1 36:1 40:1
Efficiency (%) Ratio H 57 56 55 53 56 47 45
Ratio L 46 44 43 43 45 37 34
Weight (kg) (zero stroke) 1.3 2.3 7 19 35 63
Weight (kg per 100 mm stroke) 0.26 0.42 1.14 1.67 3.04 6.13
Idling Torque (Nm) Ratio H 0.04 0.11 0.15 0.35 0.84 1.32
Idling Torque (Nm) Ratio L 0.03 0.10 0.12 0.25 0.51 0.97
Housing Material G-AL GGG-40

Worm Gear Screw Jack Features:

  • MULI® and JUMBO® series are manufactured for loads from 5 to 500 kN
  • Cubic housing, standardized mounting material and end-pieces, and pre-drilled flange holes permit easy installation of motor, gears, and shaft encoder
  • All models designed for tensile and compressive loads
  • Complete range of motors and accessories is available
  • All models designed for pushing forces, pulling forces, and for position independent functioning
  • High and low speeds available due to two different ratios
  • Synchronization of several screw jacks is easily accomplished

Worm Gear Screw Jack Options:

  • Version N- screw rotation prevented by its permanent attachment to guided load
  • Version V- anti-rotation device; recommended when screw jack cannot be secured externally to prevent rotation
  • Version R- rotatory motion of the screw jack is translated into linear motion via travelling nut Note: nut must be purchased separately
  • Gear Ratio H- one full turn of the shaft produces a stroke of 1 mm
  • Gear Ratio L- one full turn of the shaft produces a stroke of 0.25 mm
