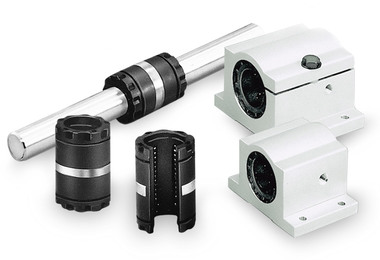

Super Smart Ball Bushing軸承系列代表了當今全球直線軸承技術的主要發展步伐。 這些通用的自對準軸承，可為工業標準的Super滾珠襯套軸承提供2倍的負載能力或8倍的運行壽命。 為了最大程度地減少安裝時間和成本，Super Smart滾珠襯套軸承可在工廠按工業單軸臺或雙軸臺標準進行預安裝，并支持此種形式的訂購。
| 軸承樣式 | 英制 (in) |
公制 (mm) |
日本 工業 標準（mm） |
|---|---|---|---|
| 尺寸 | 1/2" - 1 1/2" | 16mm - 40mm | 16mm - 40mm |
| 軸承類型 | 開放型 閉合型 |
開放型 閉合型 |
開放型 閉合型 |
| 軸承座類型 | 閉合型 開放可調節型 閉合可調節型 |
開放型 閉合型 開放可調節型 閉合可調節型 |
開放型 閉合型 開放可調節型 閉合可調節型 |
| 軸承座樣式 | 單軸承座 雙軸承座 法蘭型 剛性鋼 |
單軸承座 雙軸承座 |
單軸承座 雙軸承座 |
| 軸承承載能力 | 最大 3,880 lbf | 最大 13,700 N | 最大 13,700 N |
| 特殊選項 | 尼龍滾珠 整體式刮刷器 耐腐蝕 |
尼龍滾珠 整體式刮刷器 耐腐蝕 |
尼龍滾珠 整體式刮刷器 耐腐蝕 |
Thomson 60 Case Linear Race shafting has been popular for decades for its consistent reliability and performance. To help customers get this high-quality, lab-tested product into their hands as quickly as possible for their time-sensitive design projects, Thomson goes to great lengths.
With the special machining add-on to the Thomson online shafting selector tool, the burden of creating 2D drawings is relieved, and the amount of time needed to specify the machined shaft is dramatically reduced.
Watch this comprehensive demo and see how this feature offers the most commonly used machining options, which are automatically converted to manufacturable 2D drawings for download as printable PDFs or sharable links.
Try the online shafting selector tool and special machining add-on at: https://www.thomsonlinear.com/en/products/shafting
For any cases in which your machining configurations don't fall within the scope of our tool's options, Thomson application engineers are always ready to provide fast help.
